wsCom3010LG-2GSFP-8G/DC-INT
Product Model:
wsCom3010LG-2GSFP-8G/DC-INT
Connector (Ports):
2 Fiber + 8 RJ45
Product Specifications/Description:
Basic Managed Industrial 2 Fiber-port + 8 RJ45 1000Mbps, POE+ Supported(IEEE 802.3af/at)
·SFP Port (Module Not Included)
·Mounting: 35mmDIN-Rail, Desktop
·Input Power: 120W/48VDC
·Power interface: 2 groups of redundant DC power interfaces (V+, V−)
·Backplane Bandwidth: 20Gbps
·1×9 package, default single-mode dual-fiber;
single-mode single-fiber (1310nm/A, 1550nm/B) is optional
·Operation Temperature: -40～75°C
·Operation Humidity: 5%～90% RH, non-condensing
·Housing: Aluminum Alloy
·Product Deimensions: 159×110×47 mm
·Package Dimensions:
product details
Overview

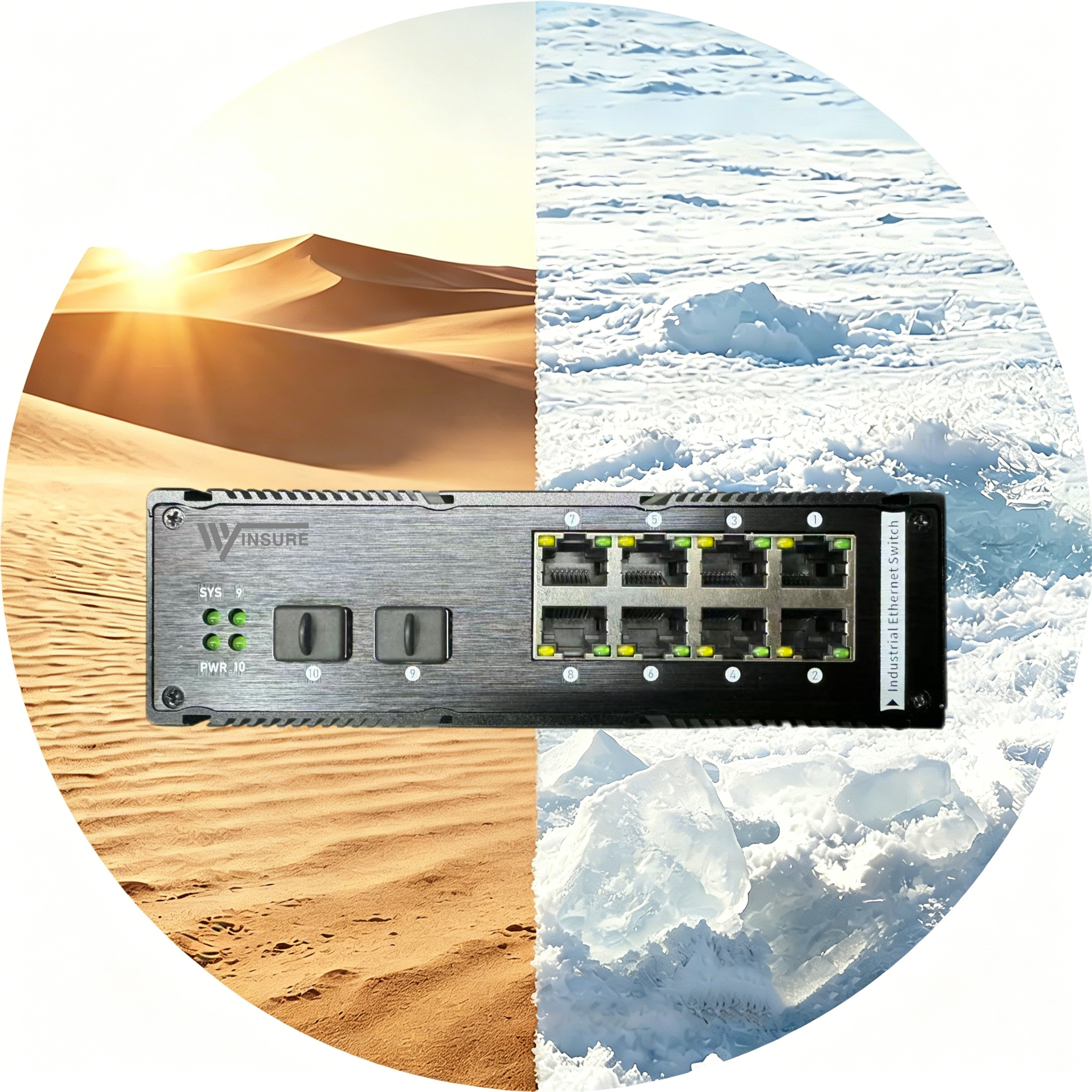

The wsCom3010 series industrial switch features 8 1000Mbps RJ45 ports and 2 Fiber ports, in industrial grade. Its compact size allows for easy installation in space-constrained control cabinets. With DIN-rail mounting, wide-temperature operation, and an IP40-rated housing with LED indicators, the wsCom3010 series provides a plug-and-play industrial solution, delivering a reliable and convenient networking solution for users’ Ethernet devices.
This series complies with FCC, CE, EMS (Electromagnetic Susceptibility) and EMI (Electromagnetic Interference) standards. With exceptional ruggedness, it adapts to various harsh environments and supports an operating temperature range of -40°C to 75°C (and 4KV surge protection on Ethernet ports). It is fully applicable to a wide range of applications such as Safe City, industrial networking, security automation, Intelligent Transportation Systems (ITS), highway surveillance, smart cities, and more.
Product Specifications
- Adopts high-quality integrated optoelectronic modules to deliver superior optical and electrical performance.
- Ensures reliable data transmission and long service life.
- Supports full-duplex/half-duplex modes with auto-negotiation capability.
- Ethernet ports feature automatic crossover detection.
- Implements store-and-forward switching architecture and supports multiple network protocols.
- Complies with industrial operation standards, with an MTBF (Mean Time Between Failures) of over 300,000 hours.
- Operating power supply: DC 48V, equipped with reverse polarity protection.
- Power port surge lightning protection: 5000 A (8/20 μs waveform).
Technical Specifications
| Parameters | Specifications |
|---|---|
| Product Name | Basic Managed Industrial 2 Fiber-port + 8 RJ45 1000Mbps, POE+ Supported(IEEE 802.3af/at) |
| Model | wsCom3010LG-2GSFP-8G/DC-INT |
| Connector (Ports) | 2 Fiber + 8 RJ45 |
| RJ45 Port | 10/100/1000BaseT(X) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X |
| Fiber Port | 1000BaseFX Port（SC/ST/FC/SFP） |
| Transmission distance (KM) | 0.55/2/20/40/60/80/100/120 |
| Switch Features | Application Layer: Layer 2 Total Packet Forwarding Rate: Packet Buffer: Switching Mode: Store-and-Forward Total Backplane Bandwidth: 20Gbps MAC Table Size: Latency: <3 μs Total Power Consumption: <3 W |
| Mechanical Specifications | Enclosure: IP40 protection rating, Aluminum Alloy housing Mounting: 35mmDIN-Rail,Desktop Cooling method: Natural convection, fanless Weight: Dimensions: |
| Operating environment | Operating Temperature : -40～75℃（-40～167℉） Storage Temperature : -40～75℃（-40～167℉） Relative Humidity : 5%～90%( non-condensing） |
| Industry standards | EMI : FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-3(RS) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-4(EFT) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-5(Surge) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-6( RF conduction) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-16( Common mode conduction) : 30V cont. 300V,1s IEC (EN) 61000-4-8: Level 3(Optional upgrade to Level 4 available) Shock : IEC 60068-2-27 Firewall : IEC 60068-2-32 Vibration : IEC 60068-2-6 |
| Power Supply | Input Voltage: DC 48V Supports dual power supply redundancy Supports built-in overcurrent protection (4.0 A) Supports reverse polarity protection |
| Ethernet standards | network protocols : IEEE802.3 10BASE-T；IEEE802.3i 10Base-T；IEEE802.3u；100Base-TX/FX； IEEE802.3ab 1000Base-T；IEEE802.3z 1000Base-X；IEEE802.3x； |
| LED Indicators | Power LED: PWR Interface LEDs: Copper port, Fiber port (Link/ACT) |
| Protection rating | IP40 |
| Certifications | CE, FCC, RoHS, ISO9001:2008 |
| MeanTime Between Failures | 300,000 hours |
| Warranty | 3-5 years |
Ordering Information
| Model | Product Description |
|---|---|
| Product Type | Gigabit Switch |
| Product Series | wsCom3010 |
| Product Model | wsCom3010LG-2GSFP-8G/DC-INT |
| Product Description | Managed,PoE, supports 2 Fiber + 8 RJ45. |
| Remarks | Optical modules sold separately Remarks: 1. Optical interface options: SC/ST/FC/SFP; single-fiber or dual-fiber optional; transmission distance optional (0.55/2/20/40/60/80/100/120 km). 2. Power supply is not included by default; power adapter is sold separately. |
