wsCom3010-8G/DC-INT

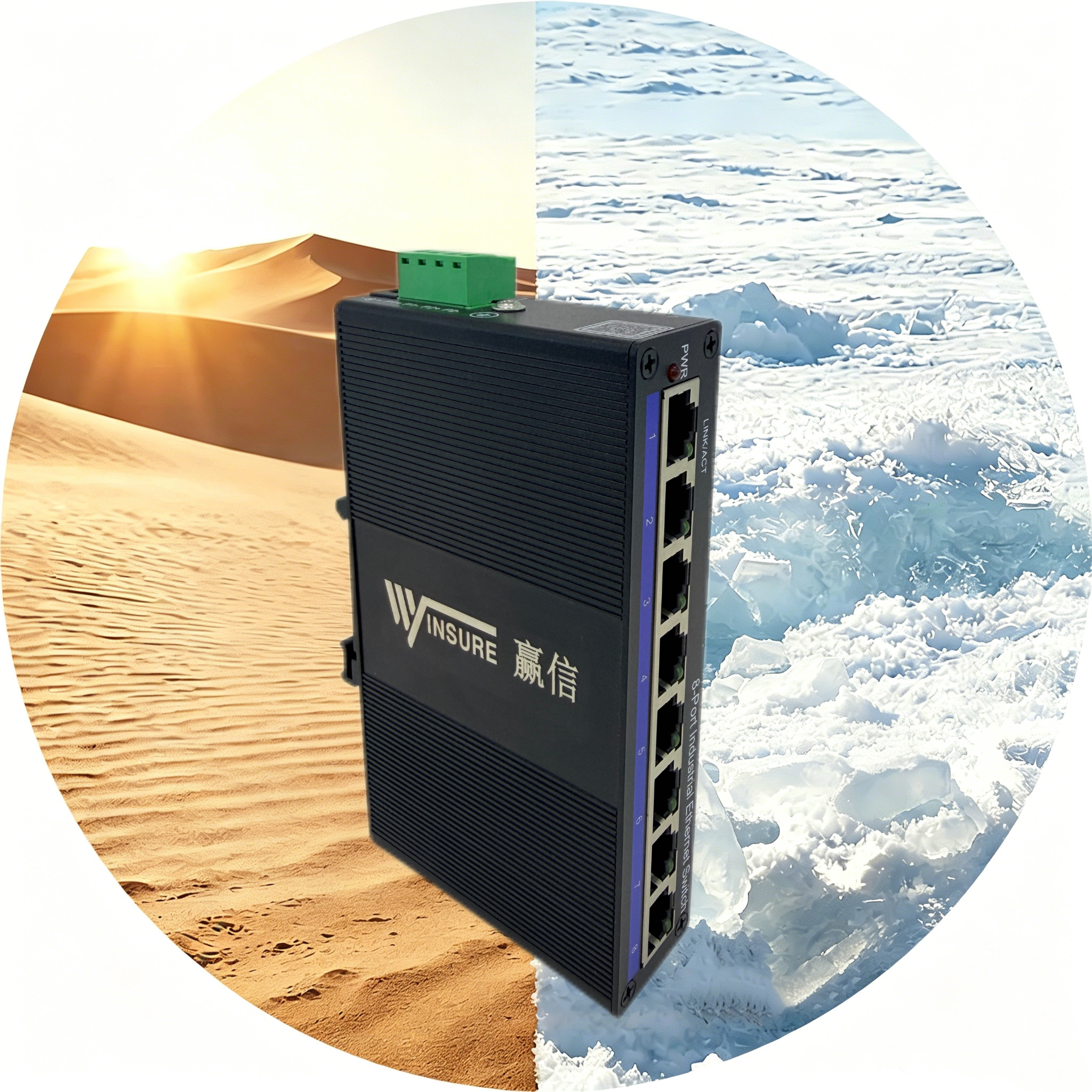

Name: wsCom3010-8G/DC-INT | Unmanaged Industrial Switch | Winsure
Brand: Winsure
SKU: wsCom3010-8G/DC-INT

Product Model:
wsCom3010-8G/DC-INT

Connector (Ports):
1000M 8-port

Product Specifications/Description:
Unmanaged Industrial 8-Port 1000M Switch
·Mounting: DIN-Rail
·Input Power: DC 12–52V
·Operation Temperature: -20℃ ~ 65℃
·Power Adapter: Standard not included
·Housing: Aluminum Alloy
·Product Deimensions: 143×78×30 mm
·Package Dimensions:

product details

Overview

The wsCom3010 series industrial switch features 8 1000Mbps RJ45 ports, in industrial grade. Its compact size allows for easy installation in space-constrained control cabinets. With DIN-rail mounting, wide-temperature operation, and an IP30-rated housing with LED indicators, the wsCom3010 series provides a plug-and-play industrial solution, delivering a reliable and convenient networking solution for users’ Ethernet devices.

This series complies with FCC, CE, EMS (Electromagnetic Susceptibility) and EMI (Electromagnetic Interference) standards. With exceptional ruggedness, it adapts to various harsh environments and supports an operating temperature range of -20°C to 65°C (and 4KV surge protection on Ethernet ports). It is fully applicable to a wide range of applications such as Safe City, industrial networking, security automation, Intelligent Transportation Systems (ITS), highway surveillance, smart cities, and more.

Product Specifications

Adopts high-quality integrated optoelectronic modules to deliver superior optical and electrical performance.
Ensures reliable data transmission and long service life.
Supports full-duplex/half-duplex modes with auto-negotiation capability.
Ethernet ports feature automatic crossover detection.
Implements store-and-forward switching architecture and supports multiple network protocols.
Complies with industrial operation standards, with an MTBF (Mean Time Between Failures) of over 300,000 hours.
Operating power supply: DC 12-52 V, equipped with reverse polarity protection.
Power port surge lightning protection: 5000 A (8/20 μs waveform).

Technical Specifications

Parameters	Specifications
Product Name	Unmanaged Industrial 8-Port 1000M Switch
Model	wsCom3010-8G/DC-INT
Connector (Ports)	1000M 8-port
RJ45 Port	10/100/1000BaseT(X) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Switch Features	Application Layer: Layer 2 Total Packet Forwarding Rate: Packet Buffer: 2M Switching Mode: Store-and-Forward Total Backplane Bandwidth: 16Gbps MAC Table Size: 16K Latency: <3 μs Total Power Consumption: <3 W
Mechanical Specifications	Enclosure: IP30 protection rating, Aluminum Alloy housing Mounting: DIN-rail type Cooling method: Natural convection, fanless Weight: Dimensions: 143×78×30mm
Operating environment	Operating Temperature : -20～65℃（-4～149℉） Storage Temperature : -20～65℃（-4～149℉） Relative Humidity : 5%～95%( non-condensing）
Industry standards	EMI : FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-3(RS) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-4(EFT) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-5(Surge) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-6( RF conduction) : Level 3(Optional upgrade to Level 4 available) IEC(EN)61000-4-16( Common mode conduction) : 30V cont. 300V,1s IEC (EN) 61000-4-8: Level 3(Optional upgrade to Level 4 available) Shock : IEC 60068-2-27 Firewall : IEC 60068-2-32 Vibration : IEC 60068-2-6
Power Supply	Input Voltage: DC 12 – 52 V Supports dual power supply redundancy Supports built-in overcurrent protection (4.0 A) Supports reverse polarity protection
Ethernet standards	network protocols : IEEE802.3 10BASE-T；IEEE802.3i 10Base-T；IEEE802.3u；100Base-TX/FX； IEEE802.3ab 1000Base-T；IEEE802.3z 1000Base-X；IEEE802.3x；
LED Indicators	Power LED: PWR Interface LEDs: Copper port, Fiber port (Link/ACT)
Protection rating	IP30
Certifications	CE, FCC, RoHS, ISO9001:2008
MeanTime Between Failures	300,000 hours
Warranty	3-5 years

Ordering Information

Model	Product Description
Product Type	Gigabit Switch
Product Series	wsCom3010
Product Model	wsCom3010-8G/DC-INT
Product Description	Unmanaged, non-PoE, supports 8 1000 Mbps RJ45 ports.
Remarks	Optical modules sold separately Remarks: 1. Optical interface options: SC/ST/FC/SFP; single-fiber or dual-fiber optional; transmission distance optional (0.55/2/20/40/60/80/100/120 km). 2. Power supply is not included by default; power adapter is sold separately.
