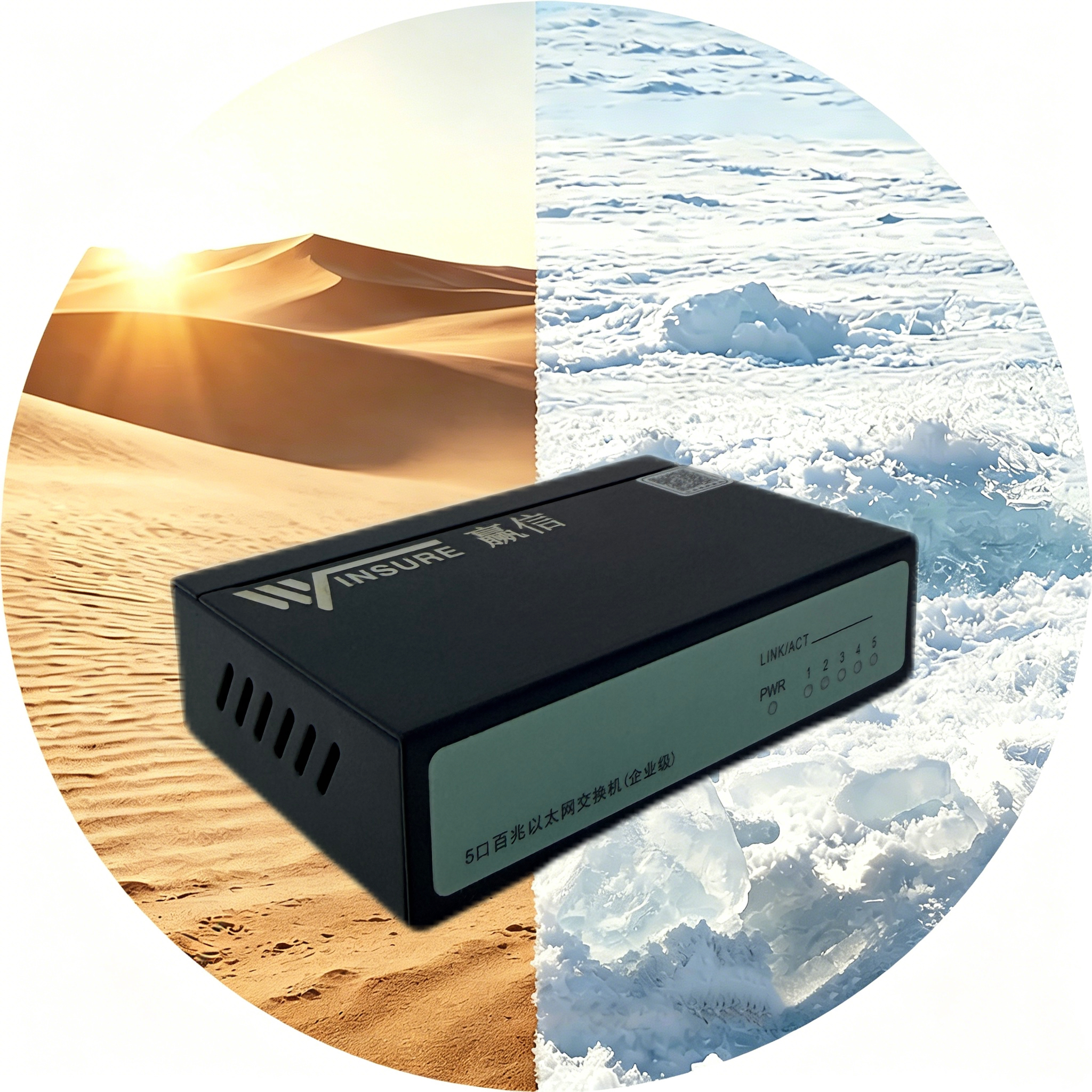

WS105-5TX/DC-INT

Name: WS105-5TX/DC-INT | Commercial Ethernet Switch | Winsure
Brand: Winsure
SKU: WS105-5TX/DC-INT

Product Model:
WS105-5TX/DC-INT

Connector (Ports):
100M 5-port

Product Specifications/Description:
Unmanaged 5 RJ45 100Mbps
·Mounting: Desktop
·Input Power: External DC 5V/1A Power Adapter
·Operation Temperature: -20℃ ~ 65℃
·Housing: Metal Housing
·Product Deimensions: 98 × 66 × 25 mm
·Package Dimensions:

product details

Overview

The wsCom105 series commercial switch features 5 100 Mbps RJ45 Ports, commercial grade. Its compact size allows for easy installation in space-constrained control cabinets. With Desktop mounting, wide-temperature operation, and an IP30-rated housing with LED indicators, the wsCom105 series provides a plug-and-play commercial solution, delivering a reliable and convenient networking solution for users’ Ethernet devices.

This series complies with FCC, CE, EMS (Electromagnetic Susceptibility) and EMI (Electromagnetic Interference) standards. With exceptional ruggedness, it adapts to various harsh environments and supports an operating temperature range of -20°C to 65°C (and 4KV surge protection on Ethernet ports). It is fully applicable to a wide range of applications such as Safe City, industrial networking, security automation, Intelligent Transportation Systems (ITS), highway surveillance, smart cities, and more.

Product Specifications

Adopts high-quality integrated optoelectronic modules to deliver superior optical and electrical performance.
Ensures reliable data transmission and long service life.
Supports full-duplex/half-duplex modes with auto-negotiation capability.
Ethernet ports feature automatic crossover detection.
Implements store-and-forward switching architecture and supports multiple network protocols.
Complies with industrial operation standards, with an MTBF (Mean Time Between Failures) of over 60,000 hours.
Operating power supply: DC 12-52 V, equipped with reverse polarity protection.
Power port surge lightning protection: 5000 A (8/20 μs waveform).

Technical Specifications

Parameters	Specifications
Product Name	Unmanaged 5 RJ45 100Mbps
Model	WS105-5TX/DC-INT
Connector (Ports)	100M 5-port
RJ45 Port	10/100BaseT(X) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Switch Features	Application Layer: Layer 2 Total Packet Forwarding Rate: Packet Buffer: Switching Mode: Store-and-Forward Total Backplane Bandwidth: 1Gbps MAC Table Size: Latency: <3 μs Total Power Consumption: <3 W
Mechanical Specifications	Enclosure: IP30 protection rating, metal housing Mounting: Desktop Cooling method: Natural convection, fanless Weight: Dimensions: 98 × 66 × 25mm
Operating environment	Operating Temperature : -20～65℃（-4～149℉） Storage Temperature : -20～65℃（-4～149℉） Relative Humidity : 5%～95%( non-condensing）
Industry standards	EMI : FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : Level 3 IEC(EN)61000-4-3(RS) : Level 3 IEC(EN)61000-4-4(EFT) : Level 3 IEC(EN)61000-4-5(Surge) : Level 3 IEC(EN)61000-4-6( RF conduction) : Level 3 IEC(EN)61000-4-16( Common mode conduction) : 30V cont. 300V,1s IEC (EN) 61000-4-8: Level 3 Shock : IEC 60068-2-27 Firewall : IEC 60068-2-32 Vibration : IEC 60068-2-6
Power Supply	Input Voltage: DC 12 – 52 V Supports dual power supply redundancy Supports built-in overcurrent protection (4.0 A) Supports reverse polarity protection
Ethernet standards	network protocols : IEEE802.3 10BASE-T；IEEE802.3i 10Base-T；IEEE802.3u；100Base-TX/FX； IEEE802.3ab 1000Base-T；IEEE802.3z 1000Base-X；IEEE802.3x；
LED Indicators	Power LED: PWR Interface LEDs: Copper port, Fiber port (Link/ACT)
Protection rating	IP30
Certifications	CE, FCC, RoHS, ISO9001:2008
MeanTime Between Failures	60,000 hours
Warranty	1 year

Ordering Information

Model	Product Description
Product Type	Fast Ethernet Switch
Product Series	wsCom105
Product Model	WS105-5TX/DC-INT
Product Description	Unmanaged, non-PoE, supports 5 100M RJ45 ports
Remarks	Optical modules sold separately Remarks: 1. Optical interface options: SC/ST/FC/SFP; single-fiber or dual-fiber optional; transmission distance optional (0.55/2/20/40/60/80/100/120 km). 2. Power supply is not included by default; power adapter is sold separately.
